Cessna 421 & 414 history, performance and specifications
![](../images3/gallery_cess421.jpg)
![](logo.jpg)
The
Cessna 421 & 414
![](new%20images/421.jpg)

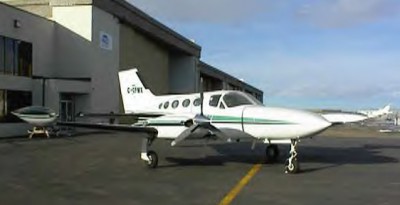

The prototype
Cessna 421 flew in October 1965, as a
pressurised development of the Cessna 411.
Deliveries began in May 1967. It was
followed in 1969 by the 421A, in 1970 by the
larger and more powerful 421B Golden
Eagle, and the 421C of 1975.
![](new%20images/421cockpit.jpg)
The 414 appeared in 1969 as a lower cost
variant of the 421. It featured a
pressurised fuselage based on that of the
401 and 402. The 414A Chancellor of
1978 dispensed with wingtip tanks in favour
of a wet wing, and featured a lengthened
nose.
1901 Model 421s and 1055 Model 414s were
built, production of both ceased in 1985.
![](../drwgs/17.jpg)
![](../drwgs/18.jpg)
- TYPE:
Pressurised 6-8 seat cabin twin.
- PERIOD
BUILT: 1967-85 (414; 1969-85)
- COUNTRY
OF ORIGIN: United States
- ENGINE:
(421C) Two Continental GTSIO-520-L
supercharged and fuel injected flat six
piston engines of 374 hp / 280 kW. (414A -
two Continental TSIO-520-NB engines of 310
hp / 230 kW)
-
DIMENSIONS:
-
Wing span:
41 ft 2 in / 12.53 m. (44 ft. 2 in /
13.45 m for 414A)
Length:
36 ft 5 in / 11.09 m
Height:
11 ft 6 in / 3.49 m.
WEIGHTS:
-
Empty
equipped: 5,067 lb / 2298 kg (Empty 414A
- 4,356 lb / 1976 kg)
Max.
takeoff: 7,450 lb / 3379 kg (Max t/o
414A - 6,750 lb / 3062 kg)
PERFORMANCE:
-
Max. speed:
258 kt / 478 kph (235 kt / 436 kph)
Long
range/economical cruise: 192 kt / 356
kph at 25,000 ft. (183 kt / 340 kph)
Initial
climb: 1,940 ft. per min. (1,520 ft/min)
Range:
1,089 n.mls. / 2016 km. (1,327 nm / 2460
km ) (both with reserves)
Service
ceiling; 30,200 ft. (30,800 ft.)
CAPACITY:
Standard seating for 6. Optional seating
for 8 in 421 and 414A, 7 in 414.
|
